Construction Temporary Fence Panels Size :2100mm x 2400mm
AS4687-2007 For Sale Fremental ,300GRAM/SQM
Australia Temporary Fence meets AS4687- 2007 Standard Strictly and
Exactly as per Standard Supplied.
As a Orginal Temp No Dig Fence Manufacturer, we have exported
temporary fencing to Australia more than 10 years.
Detailed information:
Meterial: High quality steel wire (Q195)
Mesh: 4mm horizontal and vertical wire with 150x60mm spacings.
Wire diameter: 3.5mm,4.0mm,4.5mm
Frame: 32 diameter horizontal and vertical pipes with a min 2mm
wall thickness.
Option: Costumized.
Anti-Corrosion: Hot dip galvanized or PVC Coated( Choice of color
RAL200).
Applications:
a. Pool b. Event management
c. Resources d. Construction site
e. Demolition f. Temp fence hire industry
g. Residential building h. Goverment
| Standard 1.80-3.80 or 2.0-4.0 version Temporary Fence --14 microns
per-galvanized |
| Design | Australia |
| Made | China |
| Specification |
| Height | 2100mm |
| Width | 2400mm |
| Pipes | OD 32mm x 1.8mm or OD 32 x 2.00mm |
| Infill mesh | 60mm x 150mm |
| Diameter | 3.8mm |
| Standard | AS&NZS 4687-2007 |
| Packing | Bulk Load or packing in metal pallet |
| 20gp load panels | 258 pieces temporary fencing panels only |
| 20 set load set | 250 set ( 1pcs panel+1pcs foot +1pcs clamp) |
| 40hc load panels | 710 pieces temporary fencing panels only |
| 40hc load set | 560 sets( 1pcs panel+1pcs foot +1pcs clamp) |
| Weight of panel | 20.00kg |
| Advantage | Heavy duty starter the one you saw anywhere in Australia and New
Zealand good for
hire or sale professional looking |
| Disadvantage | Easy to rusting zinc layer light 14 microns |
| Service life | 2 years -3 years |
| Colors | Silver right or electrostatic powder coated |
| Materials | Q235 Q195 PEE-GALVANIZED STEEL PIPES ROLLED PIPES |
| Welding | Two sides of temporary fencing welded by worker hand welding GMAW |
| PRICE | |

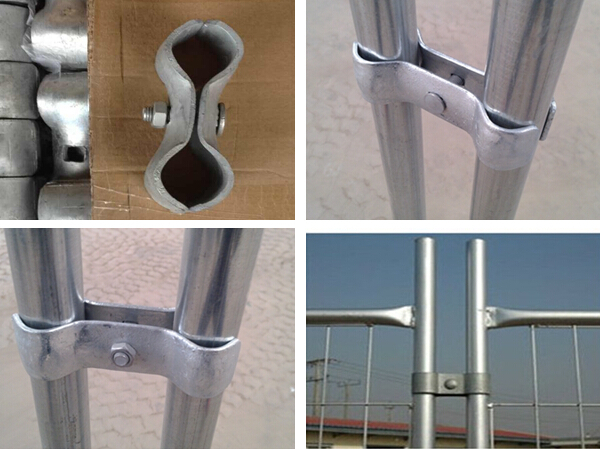

temporary fencing clamp we supplied are design by Australia for a
long term at least a 5 years repeating jobs ,all of clamp are use
high tensile steel punched then put in zinc bath for at least 42
microns zinc layer and 4.00mm thickness clamp steel better than you
saw in the market per pair at a least 0.40kg.
| Temporary Fencing Clamp-100TYPE |
 | Thickness | 4.00mm |
| Center distance | 100mm ( pipes center to center) /OVERALL LENGTH120MM |
| Technical | Punched |
| Materials | Q195 Q235 steel |
| Design | Australia |
| Made Country | China |
| Treatment | 14 microns ,42 microns hot dipped galvanized electrostatic powder
coated |
| Application | Secured Temporary Fence panels ,and Bracket ,Stay ,Gate |
| Weight | 0.45kg /set 2 pairs included big caps bolt and nuts |
| Temporary Fencing Clamp-90TYPE |
 | Thickness | 4.00mm |
| Center distance | 90mm ( pipes center to center) /OVERALL LENGTH 110MM |
| Technical | Punched |
| Materials | Q195 Q235 steel |
| Design | Australia |
| Made Country | China |
| Treatment | 14 microns ,42 microns hot dipped galvanized electrostatic powder
coated |
| Application | Secured Temporary Fence panels ,and Bracket ,Stay ,Gate |
| Weight | 0.40kg /set 2 pairs included big caps bolt and nuts |
| Temporary Fencing Clamp-80TYPE |
 | Thickness | 4.00mm |
| Center distance | 80mm ( pipes center to center) /OVERALL LENGTH 100MM |
| Technical | Punched |
| Materials | Q195 Q235 steel |
| Design | Australia |
| Made Country | China |
| Treatment | 14 microns ,42 microns hot dipped galvanized electrostatic powder
coated |
| Application | Secured Temporary Fence panels ,and Bracket ,Stay ,Gate |
| Weight | 0.35kg /set 2 pairs included big caps bolt and nuts |

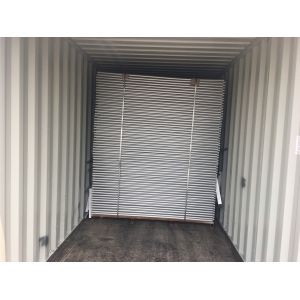

Temporary fence Packing and Loading:
40FT CONTAINER LOADING: 560 Sets (One set includes 1 Panel+1
Clamp+1 Feet)
20FT CONTAINER LOADING: 250 Sets (One set includes 1 Panel+1
Clamp+1 Feet)
